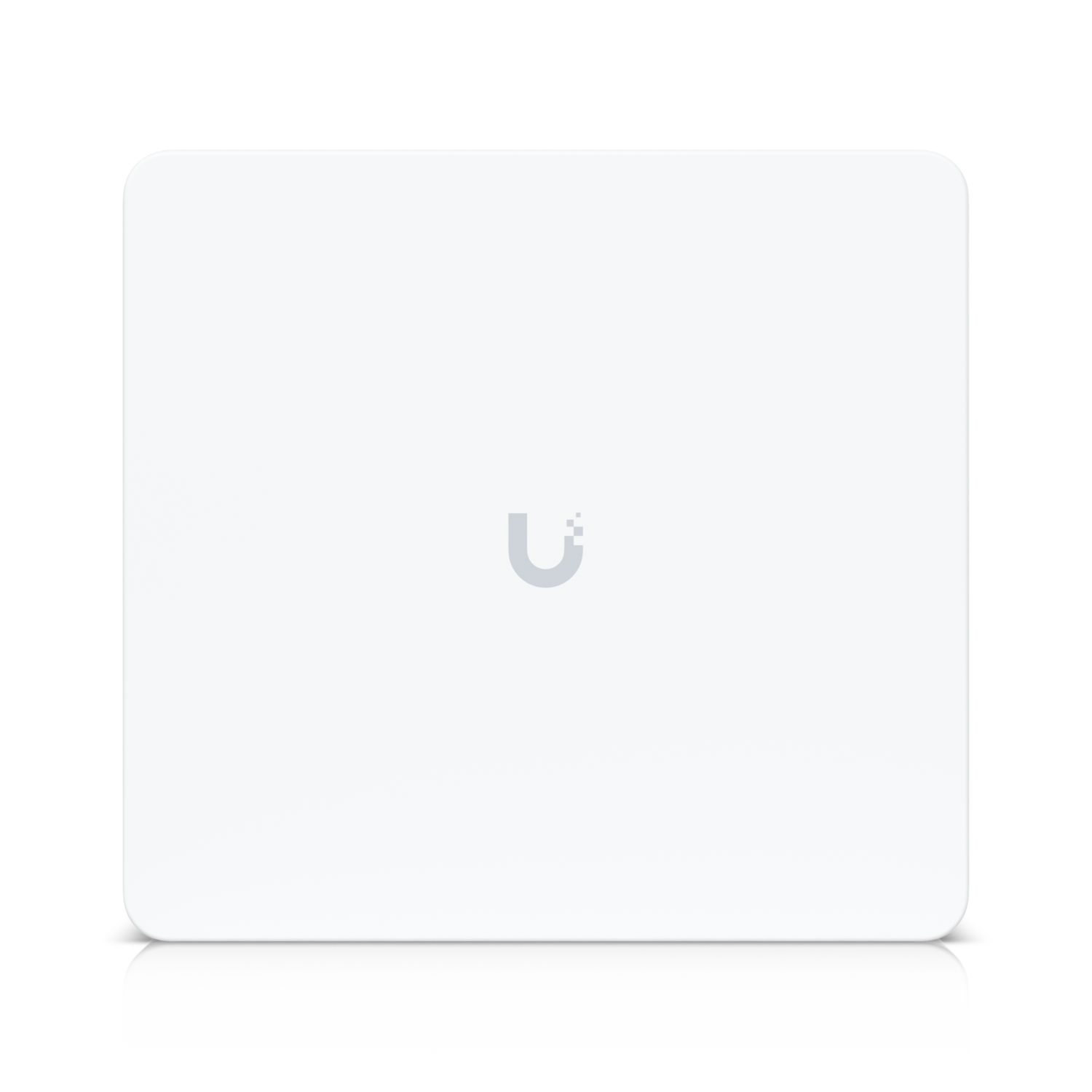

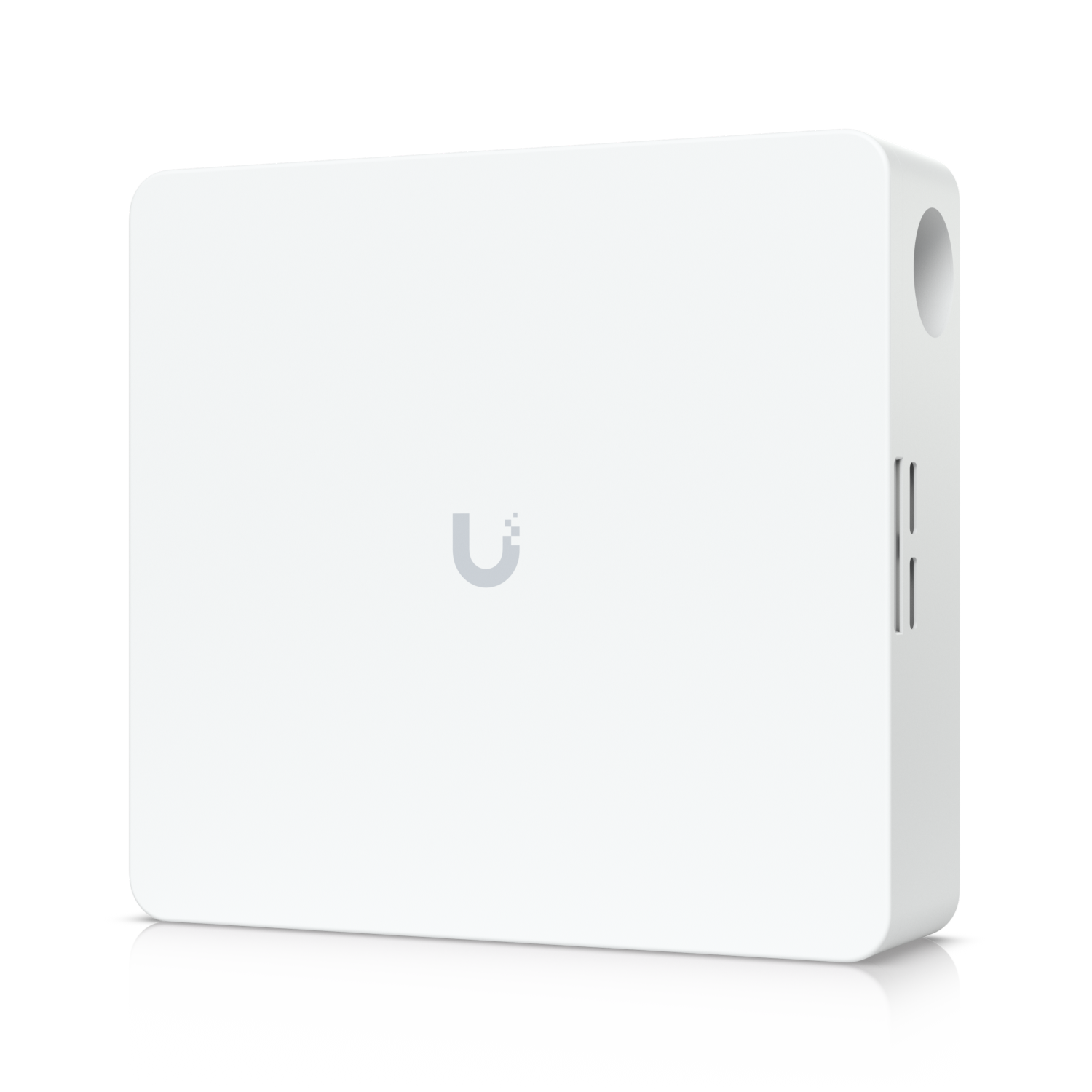

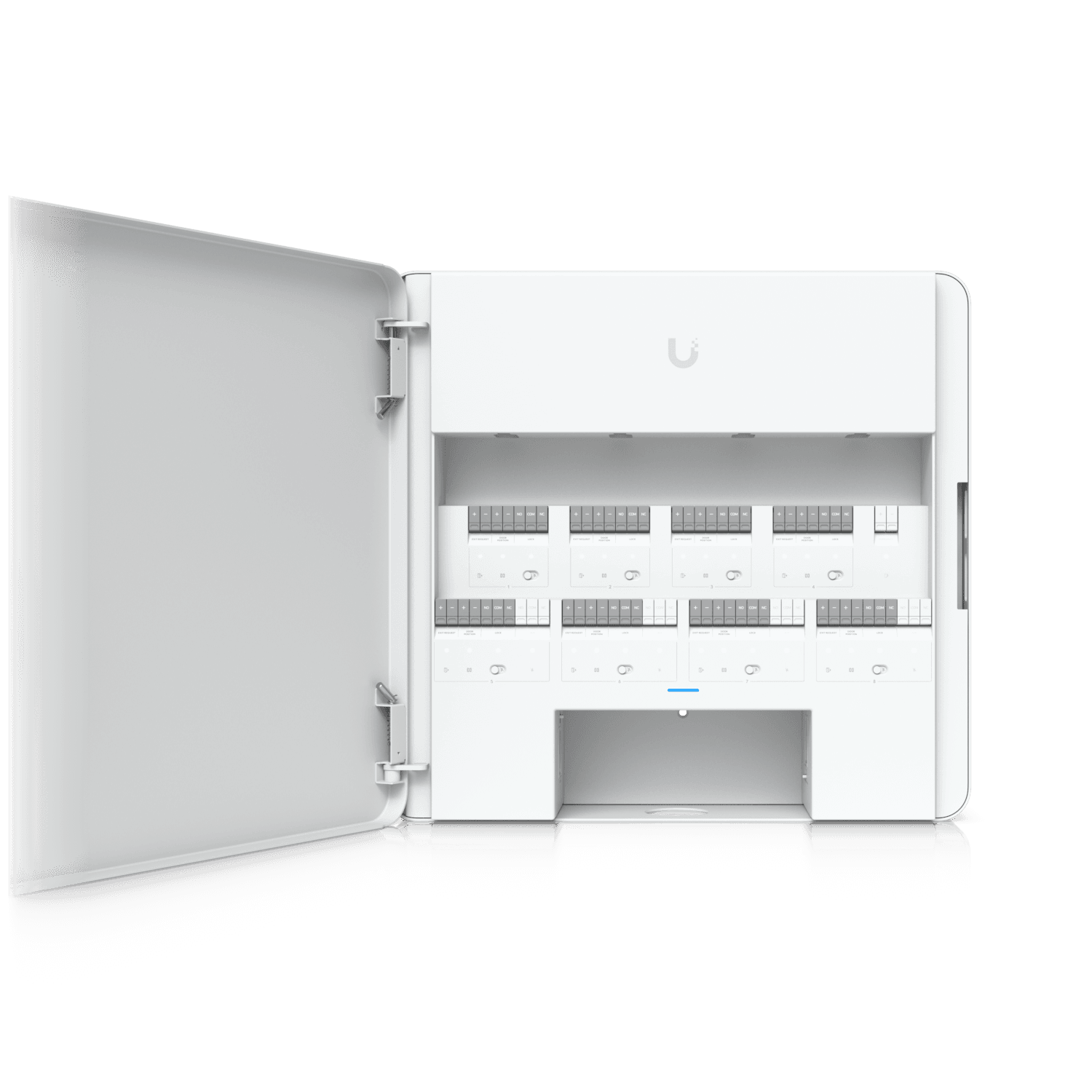

Enterprise Access Hub
UniFi

Enterprise Access Hub

Model: EAH-8

The largest UniFi Access controller, built to manage up to eight doors from one wall-mounted enclosure with onboard battery-backup power. This is the hub Mytek would spec for a multifamily building's main entries, amenity spaces, and back-of-house doors on a single controller instead of stacking several single-door hubs.

Controls up to 8 doors (4 doors if using entry+exit readers on each), up to 10,000 users
100–240V AC universal input or 32–48V DC battery backup; 240W max consumption
10x Gigabit Ethernet ports; 8 PoE outputs at 50V DC/30W each (190W aggregate)
8 request-to-exit inputs, 8 door-position inputs, 8 lock relay + 4 auxiliary outputs
UL 294 / CAN-ULC-60839-11-1 certified, NDAA compliant, wall-mount, 379 x 355 x 105mm
1

$1,098.90 (estimated, plus tax at checkout)

Commercial and multi-unit projects typically qualify for volume pricing -- confirmed with your quote.

View manufacturer spec sheet
