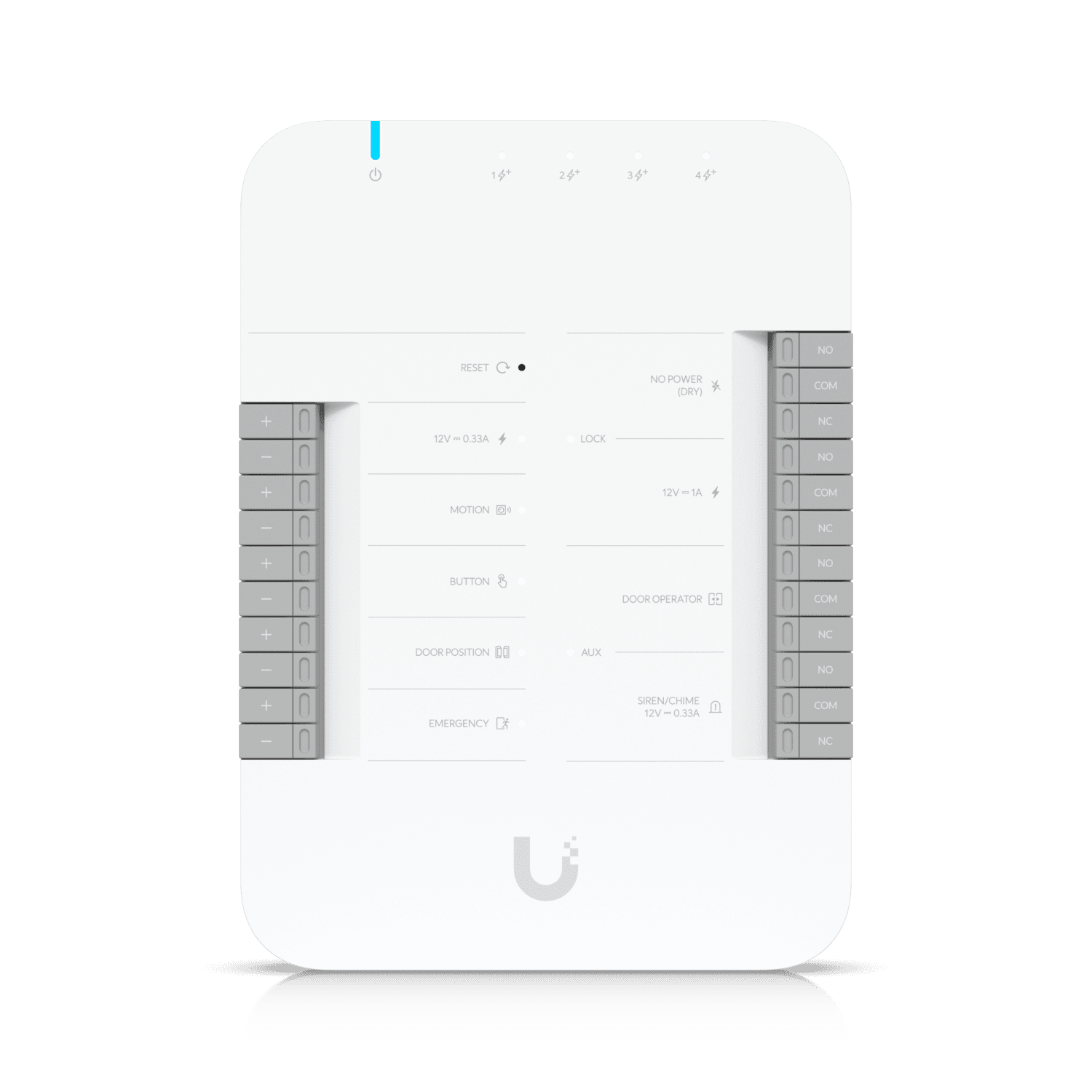

UniFi Door Hub
UniFi

UniFi Door Hub

Model: UA-Hub-Door

A DIN-rail-mounted single-door controller that sits between the readers and the electrified lock hardware, handling entry/exit logic, relay outputs, and door-position sensing for one opening. This is the typical hub for a standard single-door install (office suite, unit entry, mechanical room).

Manages 1 door with full entry/exit control, up to 6,000 users
PoE++ powered (50V DC) or UL 294-listed PSU; 30-50W consumption
5x Gigabit Ethernet ports; 4x PoE+ outputs (30W/port, 45W aggregate)
Dry (30V DC/1A) and powered (12V DC) lock/auxiliary relay outputs
Indoor-only, DIN-rail mount, UL 294 certified, 174.9 x 126 x 32.9mm
1

$218.90 (estimated, plus tax at checkout)

Commercial and multi-unit projects typically qualify for volume pricing -- confirmed with your quote.

View manufacturer spec sheet
