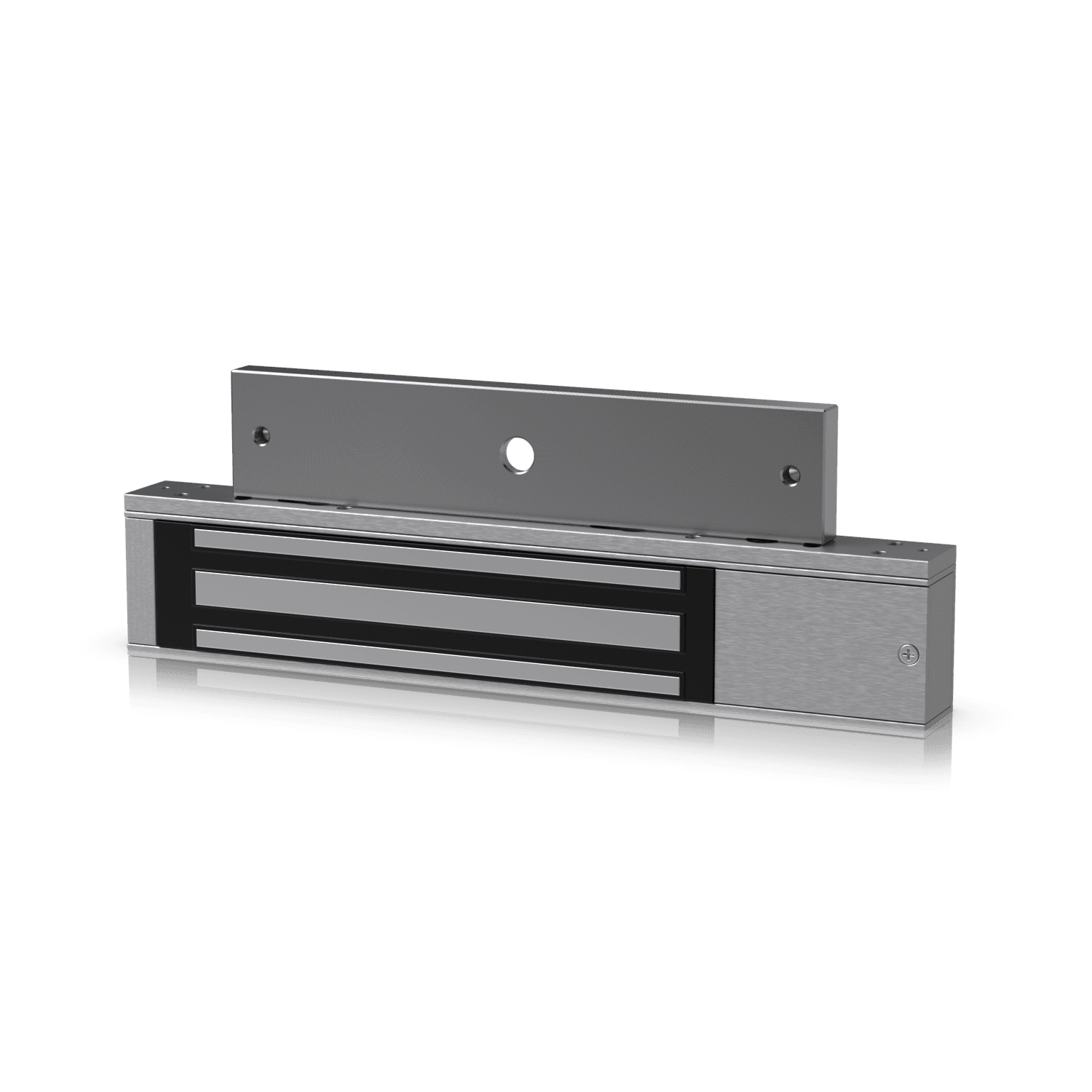

UniFi Access Magnetic Lock
UniFi

UniFi Access Magnetic Lock

Model: UACC-Lock-Magnetic-270kg

A fail-safe electromagnetic lock that mounts at the top of a door frame and releases power to unlock — the standard lock hardware paired with a Door Hub or Gate Hub for a controlled single-leaf door. Rated to hold roughly 600 lb, with a heavier 540kg/1,200lb version also available for larger doors.

600 lb (270 kg) holding force (540kg/1,200lb variant also available)
12V DC ±10%, 500mA ±10% power draw
Fail-safe operation (unlocks on power loss) with embedded door-position sensor
Aluminum housing/brackets with steel armature plate
-10 to 60°C operating range, NDAA compliant
1

$163.90 (estimated, plus tax at checkout)

Commercial and multi-unit projects typically qualify for volume pricing -- confirmed with your quote.

View manufacturer spec sheet
